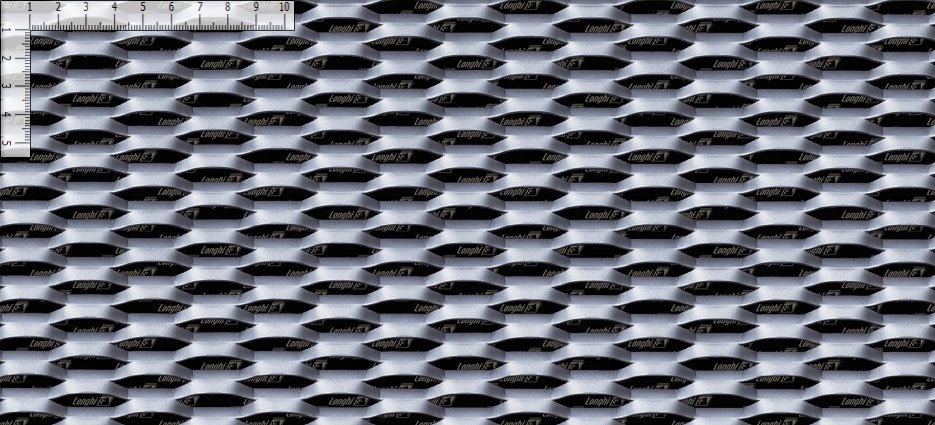

MTC Fils 21 - Open Area 33.3%
$0.00
Technical Specs:
Part Number - MTC Fils 21
Open Area - 33.3%
Materials - Aluminium & Carbon Steel
Long Way of Diamond - 45mm
Short Way of Diamond - 15mm (13.4mm - Actual)
Sheet Sizes available - 1000 x 2000mm, 1250 x 2500mm, 1500 x 3000mm & (2000-2500 x 2000mm Max)
Strand Width - 5.0mm
Strand Thickness - 1.5, 2.0 & 3.0mm
Weight - Aluminium (kg/m2) - 3.00, 4.00, 6.00
Weight - Carbon Steel (kg/m2) - 8.80, 11.60 & 17.50
Sheet Thickness - 7mm - measured at the centre
Applications:
Balustrade Infills, Decorative, Cladding, Facades, Ceiling Tiles.
Attachment Methods:
For fixing details please contact the sales office.
